AT THE SCHOOL FOR THE DEAF AND THE BLIND,
LITTLE FLOWER CONVENT, CHENNAI.
LITTLE FLOWER CONVENT, CHENNAI.
a project by
Chennai's first collaborative water alliance
SKIP INTRO
Project team
Support & Facilitation
REMOTE MONITORING SETUP
0 KLD
(Kilo Liters per day)
179 ppl.
OVERFLOW TO MUNICIPAL SEWER
SETTLER
PRE-TREATMENT ANAEROBIC
FLOWMETER
TOT:
0
FLOW:
0.0000

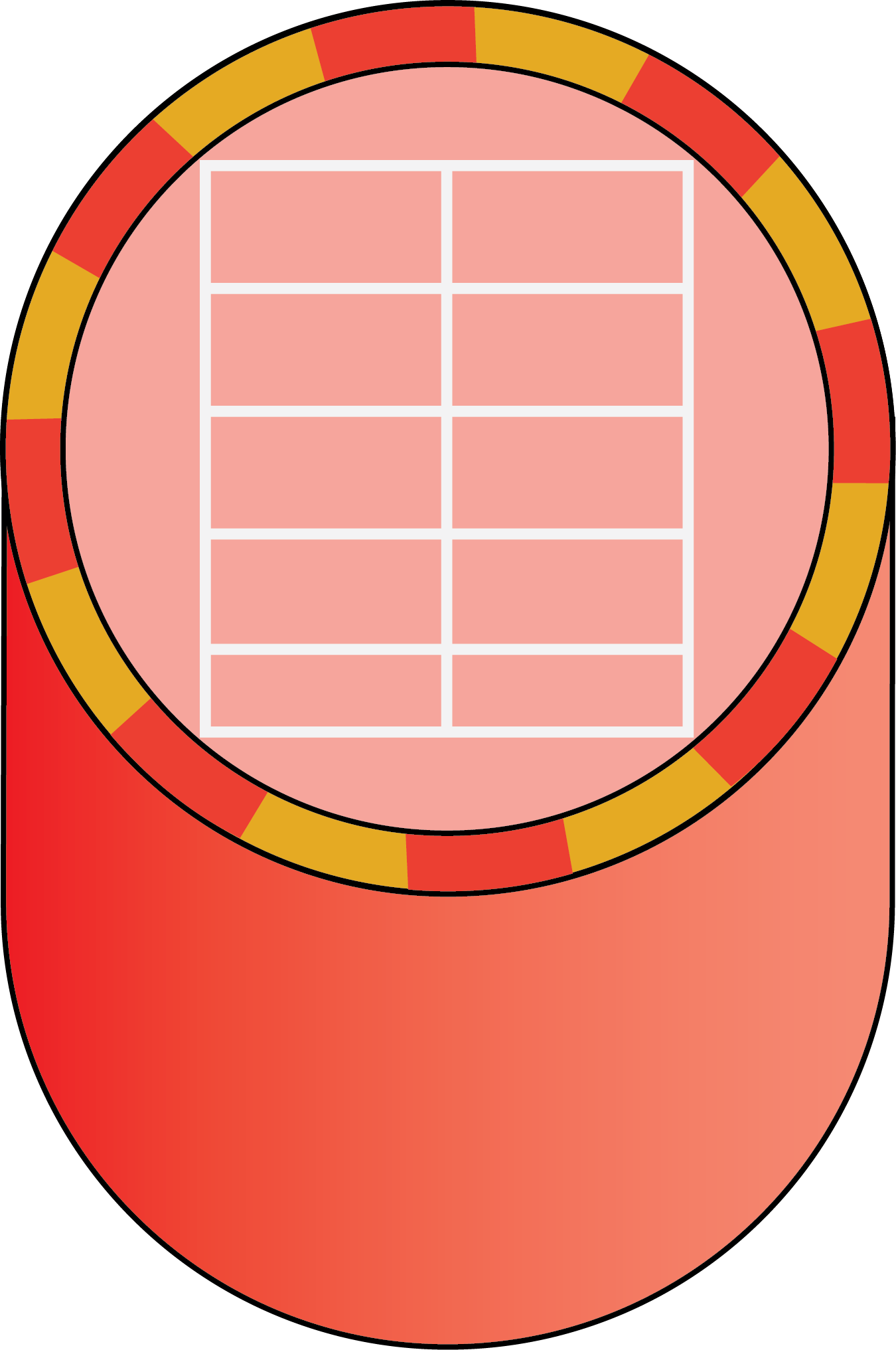

ANAEROBIC REACTOR
PRIMARY TREATMENT ANAEROBIC
CONSTRUCTED WETLAND - 1
CONSTRUCTED WETLAND - 2
SECONDARY TREATMENT AEROBIC
WATER TANK
FLOWMETER
TOT:
0
FLOW:
0.0000
BGL:
0
BELOW GROUND LEVEL
SENSOR
0 l/day
(data updated every 24 hours)
Reduced waste water volume to city sewer
Treated water used for irrigation
Reduced fresh water consumption
Added to local aquifer
3000 plants
treat waste water irrigated using treated water 900 m2 garden within 1800 m2 overall footprint.
2°C cooling
in micro climate produced by plants and trees
100% solar powered
electricity used for pumps.
RECHARGE WELL
BORE WELL
MONITORING WELL

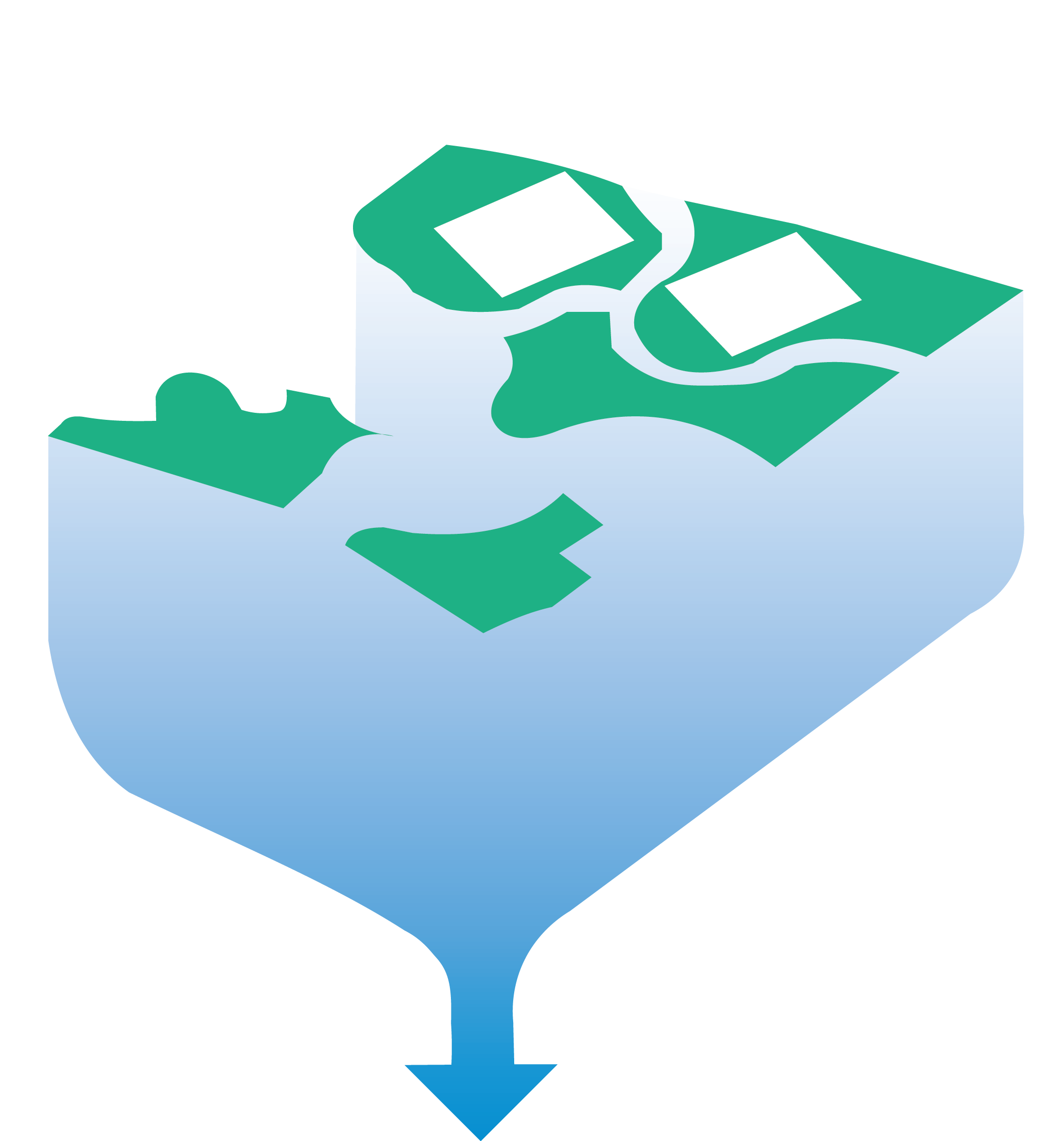

IRRIGATION & INFILTRATION GARDENS
MONITORING QUANTITY LIVE
QUANTITY OF TREATMENT
(Data updates in every 24 hours)
SETTLER
PRE-TREATMENT ANAEROBIC
FLOWMETER
ANAEROBIC REACTOR
PRIMARY TREATMENT ANAEROBIC
CONSTRUCTED WETLAND - 1
CONSTRUCTED WETLAND - 2
SECONDARY TREATMENT AEROBIC
WATER TANK
FLOWMETER
IMPACT ON GROUND WATER LEVEL
BGL:
0
BELOW GROUND LEVEL
SENSOR
BORE WELL
MONITORING WELL
IRRIGATION & INFILTRATION GARDENS
GROUND LEVEL
-100 cm
-200 cm
-300 cm
-400 cm
-500 cm
-600 cm
-700 cm
-800 cm
-900 cm
-1000 cm
-1100 cm
-1200 cm
-1300 cm
-1400 cm
BELOW GROUND LEVEL
MONITORING QUALITY : THROUGH SSFCW - 1
24 hour samples collected with
composite sampler
& tested in certified lab.
composite sampler
& tested in certified lab.
SETTLER
PRE-TREATMENT ANAEROBIC
FLOWMETER
ANAEROBIC REACTOR
SECONDARY TREATMENT ANAEROBIC
CONSTRUCTED WETLAND - 1
CONSTRUCTED WETLAND - 2
TERTIARY TREATMENT AEROBIC
WATER TANK
FLOWMETER
| Settler | Anaerobic Reactor | Constructed Wetland1 | ||
|---|---|---|---|---|
| pH | ||||
| BOD | ||||
| COD | ||||
| TSS | ||||
| TDS |
Sample Data Collected on : 0000-00-00
| Borewell | |
|---|---|
| pH | |
| BOD | |
| COD | |
| TSS | |
| TDS |
RECHARGE WELL
BORE WELL
IRRIGATION & INFILTRATION GARDENS
